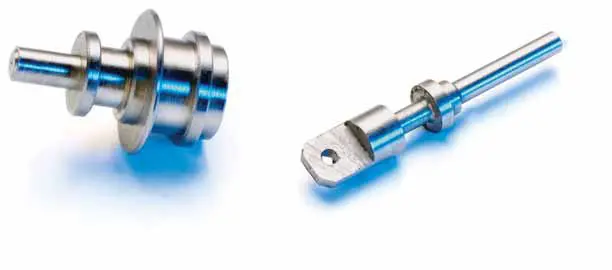

11SMnPb37 - Nr.1.0737

Automotive

Fasteners

Household Appliances

High Sulfur Lead Alloyed Free-Cutting Steel with Excellent Machinability

Free-cutting steel with the addition of lead similar to the previous one, but with a higher sulfur content. It is the most common type in Italy and France and it provides excellent machinability. The Telyx version has a further improved machinability with respect to PS113.

References and Comparable Standards

Standard Reference: EN ISO 683-4: 2018 (Hot-rolled products) | EN 10277: 2018 (Bright products)

References and comparable standards for References steel
Region	Standard	Grade	Werkstoff No.
Europe	EN 10087: 1998 EN 10277-3: 2008	11SMnPb37	1.0737
Italy	UNI 4838-80	CF9SMnPb36	-
Germany	DIN 1651-88	9SMnPb36	1.0737
France	NF A 35-561-92	S300Pb	-
UK	BS 970 pt.3-91	-	-
USA	ASTM A 29	-	-

Europe

StandardEN 10087: 1998
EN 10277-3: 2008

Grade11SMnPb37

Werkstoff No.1.0737

Italy

StandardUNI 4838-80

GradeCF9SMnPb36

Werkstoff No.-

Germany

StandardDIN 1651-88

Grade9SMnPb36

Werkstoff No.1.0737

France

StandardNF A 35-561-92

GradeS300Pb

Werkstoff No.-

StandardBS 970 pt.3-91

Grade-

Werkstoff No.-

USA

StandardASTM A 29

Grade-

Werkstoff No.-

Chemical Composition (Cast Analysis) (%)

Chemical composition values for References steel
C / max	Si / max	Mn	P / max	S	Pb	Te*
0,14	0,05	1,00-1,50	0,11	0,34-0,40	0,20-0,35	0,005-0,030
* Added only in tellurium version, TELYX.

Chemical composition values for References steel
Element	Value (%)
Carbon	0,14
Silicon	0,05
Manganese	1,00-1,50
Phosphorus	0,11
Sulfur	0,34-0,40
Lead	0,20-0,35
Tellurium*	0,005-0,030
* Added only in tellurium version, TELYX.

Mechanical Properties – Bright Steel

Mechanical properties for References steel
Size (mm)	as Rolled and/or as Rolled + Turned (+SH)		Cold Drawn (+C)
Size (mm)	Hardness max. HB	Tensile Strength Rm (MPa)	Yield Strength Rp0,2 (MPa) min	Tensile Strength Rm (MPa)	Elongation A5 (%) min
5≤d≤10	PropertyProduction MethodValue					as Rolled and/or as Rolled + Turned (+SH)-	as Rolled and/or as Rolled + Turned (+SH)-	Cold Drawn (+C)440	Cold Drawn (+C)510-810	Cold Drawn (+C)6
10<d≤16	PropertyProduction MethodValue					as Rolled and/or as Rolled + Turned (+SH)-	as Rolled and/or as Rolled + Turned (+SH)-	Cold Drawn (+C)410	Cold Drawn (+C)490-760	Cold Drawn (+C)7
16<d≤40	PropertyProduction MethodValue					as Rolled and/or as Rolled + Turned (+SH)169	as Rolled and/or as Rolled + Turned (+SH)380-570	Cold Drawn (+C)375	Cold Drawn (+C)460-710	Cold Drawn (+C)8
40<d≤63	PropertyProduction MethodValue					as Rolled and/or as Rolled + Turned (+SH)169	as Rolled and/or as Rolled + Turned (+SH)370-570	Cold Drawn (+C)305	Cold Drawn (+C)400-650	Cold Drawn (+C)9
63<d≤100	PropertyProduction MethodValue					as Rolled and/or as Rolled + Turned (+SH)154	as Rolled and/or as Rolled + Turned (+SH)360-520	Cold Drawn (+C)245	Cold Drawn (+C)360-630	Cold Drawn (+C)9
Note: For size <5 mm the mechanical properties may be agreed at the time of enquiry and order.
