17NiCrMo6-4 Steel - Nr.1.6566 17NiCrMoS6-4 - Nr.1.6569
What Is 17NiCrMo6-4/17NiCrMoS6-4 Steel?

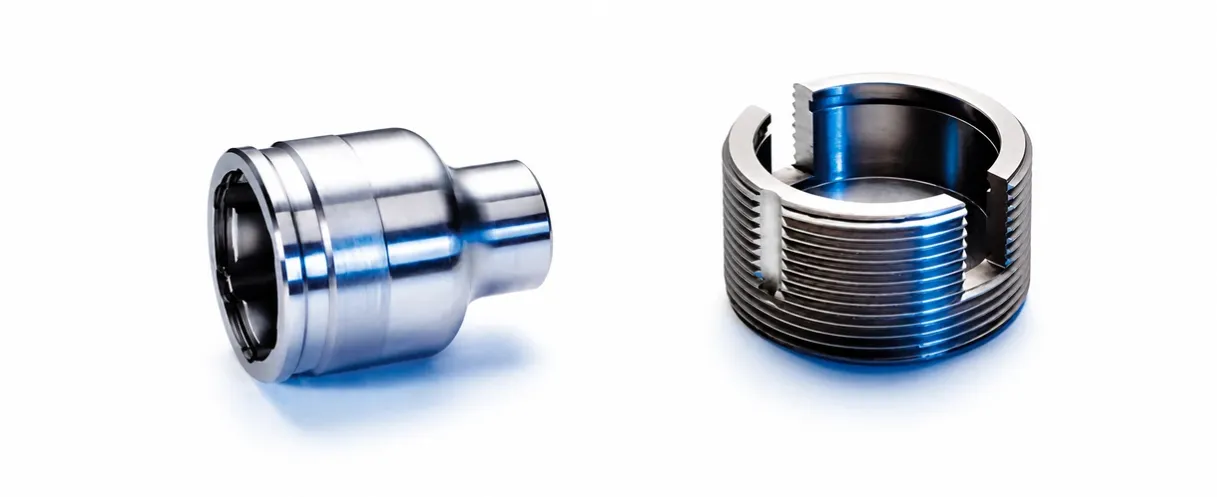

17NiCrMo6-4 is an alloy steel with chromium, nickel, and molybdenum. This is a carburized steel with excellent temperability that is often used to obtain pieces with high requirements and complex shapes such as gears and large shafts subject to fatigue and vibrations.
17NiCrMo6-4/17NiCrMoS6-4 Steel: References and Comparable Standards
Standard Reference: EN ISO 683-3: 2018 (Hot-rolled) | EN 10277: 2018 (Bright products)
| Region | Standard | Grade | Werkstoff No. |
|---|---|---|---|
| Europe | UNI EN 10084:2008 UNI EN 10277-4:2008 |
17NiCrMo6-4 | 1.6566 |
| Italy | (UNI 7846-78) | 18NiCrMo5 | - |
| Germany | (DIN 17210-84) | - | - |
| France | (NFA35-551-86) | 18NCD6 | - |
| UK | (BS970 pt.1--96) | 815M17 | - |
| USA | ASTM A 29 | - | - |
Europe
StandardUNI EN 10084:2008
UNI EN 10277-4:2008
Grade17NiCrMo6-4
Werkstoff No.1.6566
Italy
Standard(UNI 7846-78)
Grade18NiCrMo5
Werkstoff No.-
Germany
Standard(DIN 17210-84)
Grade-
Werkstoff No.-
France
Standard(NFA35-551-86)
Grade18NCD6
Werkstoff No.-
UK
Standard(BS970 pt.1--96)
Grade815M17
Werkstoff No.-
USA
StandardASTM A 29
Grade-
Werkstoff No.-
17NiCrMo6-4/17NiCrMoS6-4 Steel: Chemical Composition (Cast Analysis) (%)
17NiCrMo6-4/17NiCrMoS6-4 Steel: Mechanical Properties - As Rolled Condition
| Treated to improve sherability (+S) | Annealed to max. hardness requirements (+A) | Treated to hardness range (+TH) | Treated to hardness range (+TH) | Treated to ferrite-pearlite structure and hardness range (+FP) | Treated to ferrite-pearlite structure and hardness range (+FP) |
|---|---|---|---|---|---|
| HardnessHB | HardnessHB | HardnessHB | HardnessHB | HardnessHB | HardnessHB |
| Treated to improve sherability (+S)≤ 255 | Annealed to max. hardness requirements (+A)≤ 229 | Treated to hardness range (+TH)≥ 179 | Treated to hardness range (+TH)≤ 229 | Treated to ferrite-pearlite structure and hardness range (+FP)≥ 149 | Treated to ferrite-pearlite structure and hardness range (+FP)≤ 201 |
17NiCrMo6-4/17NiCrMoS6-4 Steel: Mechanical Properties – Bright Steel
| Size (mm) |
+A*+ Turned (+A +SH) |
+A*+ Cold drawn (+A+C) |
FP**+ Turned (+FP +SH) |
FP**+ Cold drawn (+FP +C) |
|||
|---|---|---|---|---|---|---|---|
| Maximum HardnessHB | Maximum HardnessHB | Maximum HardnessHB | Maximum HardnessHB | Maximum HardnessHB | Maximum HardnessHB | Maximum HardnessHB | |
| 5≤d≤10 | +A*+ Turned (+A +SH)- | +A*+ Cold drawn (+A+C)275 | FP**+ Turned (+FP +SH)- | FP**+ Cold drawn (+FP +C)- | |||
| 10<d≤16 | +A*+ Turned (+A +SH)- | +A*+ Cold drawn (+A+C)265 | FP**+ Turned (+FP +SH)- | FP**+ Cold drawn (+FP +C)- | |||
| 16<d≤40 | +A*+ Turned (+A +SH)229 | +A*+ Cold drawn (+A+C)260 | FP**+ Turned (+FP +SH)149-201 | FP**+ Cold drawn (+FP +C)149-250 | |||
| 40<d≤63 | +A*+ Turned (+A +SH)229 | +A*+ Cold drawn (+A+C)255 | FP**+ Turned (+FP +SH)149-201 | FP**+ Cold drawn (+FP +C)149-245 | |||
| 63<d≤100 | +A*+ Turned (+A +SH)229 | +A*+ Cold drawn (+A+C)255 | FP**+ Turned (+FP +SH)149-201 | FP**+ Cold drawn (+FP +C)149-245 | |||
| *+A = annealed to maximum hardness requirement. **+FP = treated to ferrite-perlite structure and hardness range. For size <5 mm the mechanical properties may be agreed at the time of enquiry and order. |
|||||||
17NiCrMo6-4/17NiCrMoS6-4 Steel: Working Temperatures Recommended
| Operation | Temperature |
|---|---|
| Hot forgings deformation | 900-1150 °C |
| Carburizing temperature | 880-980 °C |
| Core quenching temperature | 830-870 °C |
| Case quenching temperature | 780-820 °C |
| Tempering | 150-200 °C |
17NiCrMo6-4/17NiCrMoS6-4 Steel: Hardness Limits (Jominy Test)
| Limits of range | Hardness HRC at a distance from quenched end of test pieces (mm) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1,5 | 3 | 5 | 7 | 9 | 11 | 13 | 15 | 20 | 25 | 30 | 35 | 40 | ||
| +H | Max | 48 | 48 | 47 | 46 | 45 | 44 | 42 | 41 | 38 | 36 | 35 | 34 | 33 |
| Min | 40 | 40 | 37 | 34 | 30 | 28 | 27 | 26 | 24 | 23 | 22 | 21 | - | |
| +HH | Max | 48 | 48 | 47 | 46 | 45 | 44 | 42 | 41 | 38 | 36 | 35 | 34 | 33 |
| Min | 43 | 43 | 40 | 38 | 35 | 33 | 32 | 31 | 29 | 27 | 26 | 25 | 24 | |
| +HL | Max | 45 | 45 | 44 | 42 | 40 | 39 | 37 | 36 | 33 | 32 | 31 | 30 | 29 |
| Min | 40 | 40 | 37 | 34 | 30 | 28 | 27 | 26 | 24 | 23 | 22 | 21 | - | |
